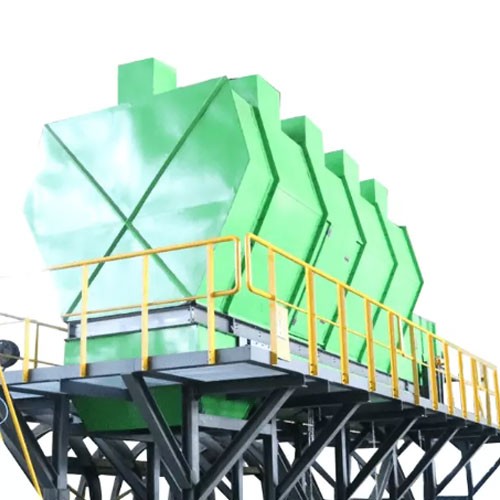

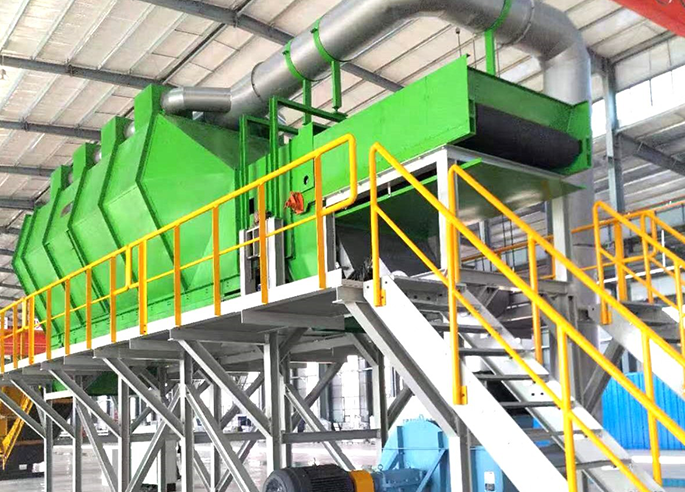

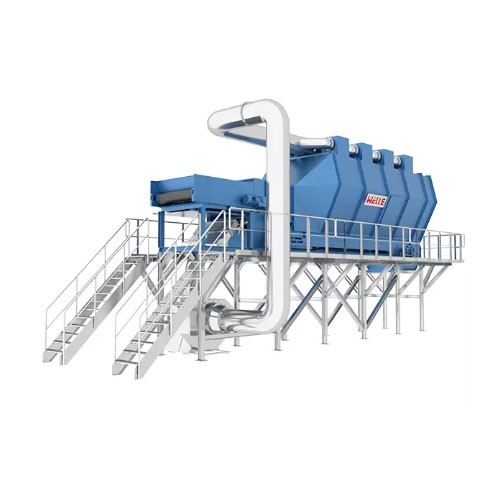

Air Separator

Equipment name: Air separator

Equipment introduction:

The air separator makes use of different weight and density of materials for screening. Air is used as the separation medium to separate the materials entering the sorter according to their density and particle size under the action of air flow and mechanical vibration. When the material passes through the air separator, the heavy material falls directly through hopper onto the next belt conveyor.  Blown up by the air, the light material settles in the sorter chamber onto the light material conveyor.

Equipment features:

1. Adopt high-speed belt to meet the conveying efficiency;

2. The light material settling chamber is made of galvanized sheet, which has the dual effects of corrosion prevention and compression resistance;

3. The exhaust pipe is equipped with an interface connected with the dust removal and deodorization system to effectively control the pollution to the surrounding atmosphere;

4. Single or double drum configuration can be adopted according to sorting requirements;

5. Modular design , which is convenient for functional extension, maintenance and repair;

6. The outlet hood, air speed and pressure are adjustable, to adapt to various materials.

Applicable field:

Construction and decoration waste, domestic waste, stale waste, industrial waste, etc.
